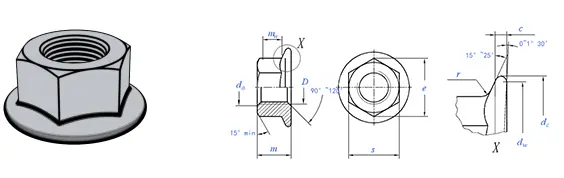

| Thread specifications (D) | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||
| P (Pitch) | Coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| Fine Teeth 1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Fine Teeth 2 | / | / | / | -1 | -1.25 | / | / | / | ||
| c | Min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |
| Min | Min | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
| Max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | ||
| dc | Max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 | |
| dw | Min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |
| e | Min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | |
| m | Max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
| Min | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | ||
| mw | Min | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | 7.8 | 9 | 11.1 | |
| s | Maximum = nominal | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 | |
| Min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.67 | ||
| r | Max | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | 0.88 | 0.96 | 1.2 | |

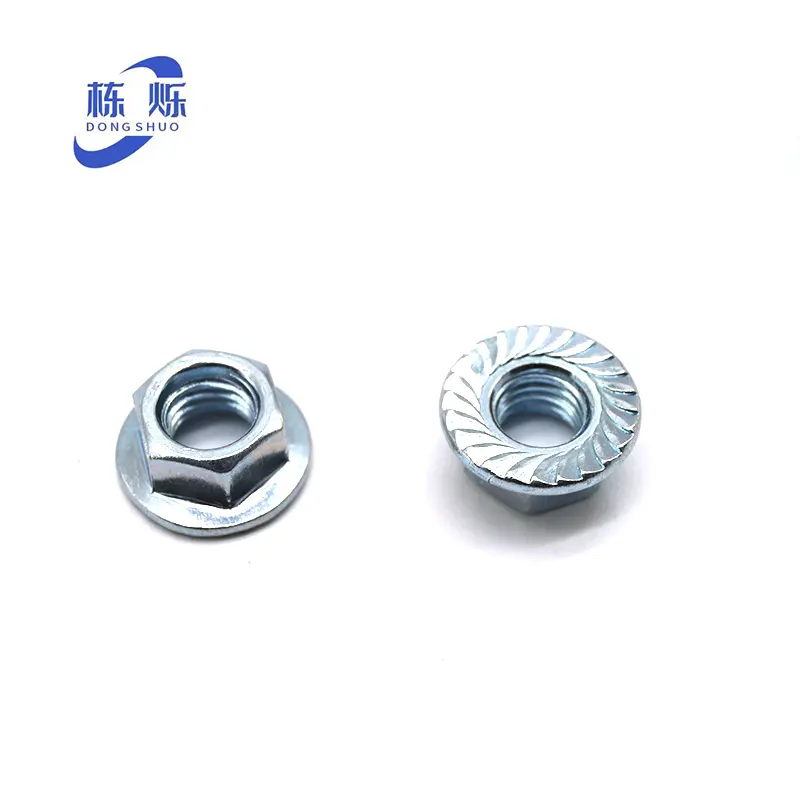

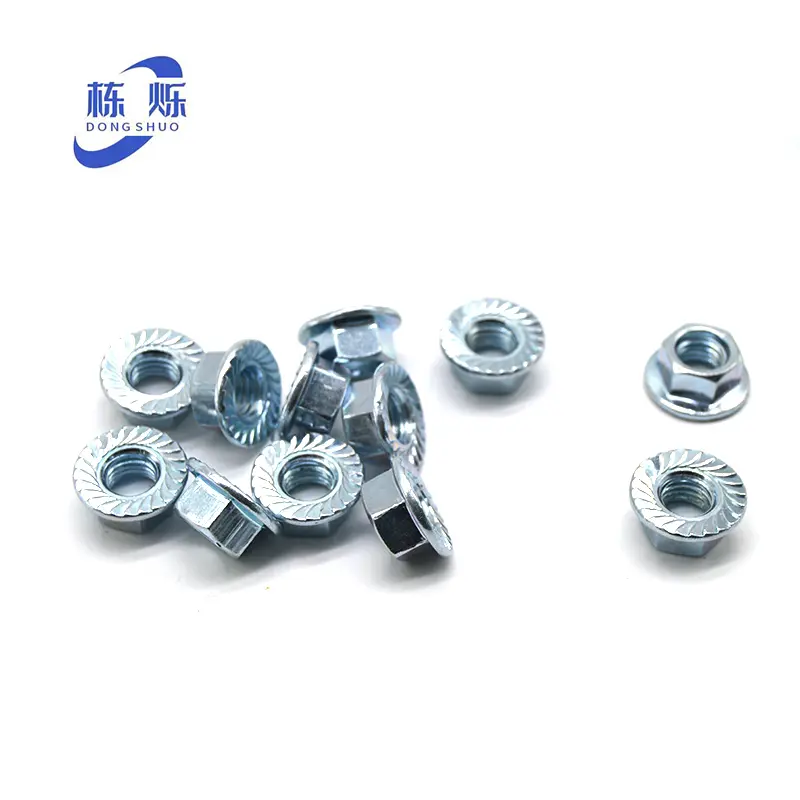

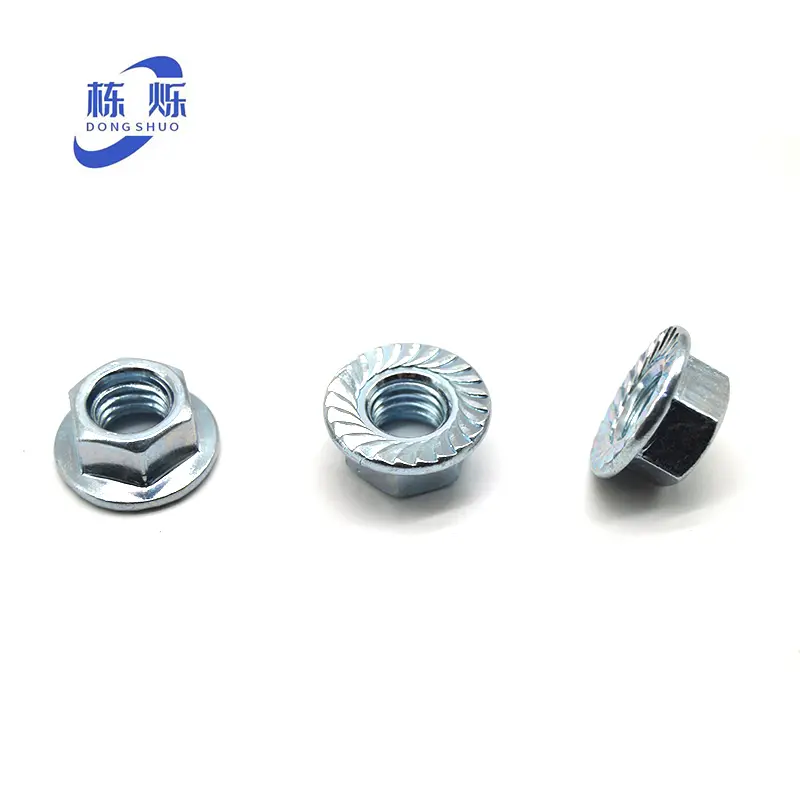

Flange nuts are essential in industrial sectors, particularly for mechanical equipment like compressors, pumps, air conditioners, and fans.
Integrated with washers, the wide flange design increases the contact area with workpieces, providing superior support and higher tensile strength compared to standard nut and washer combinations.

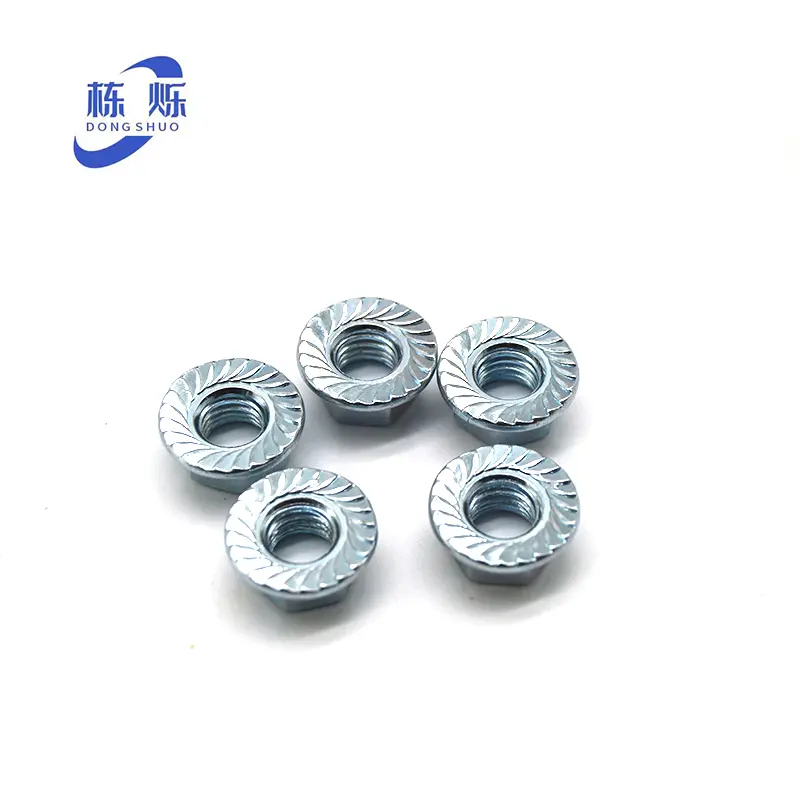

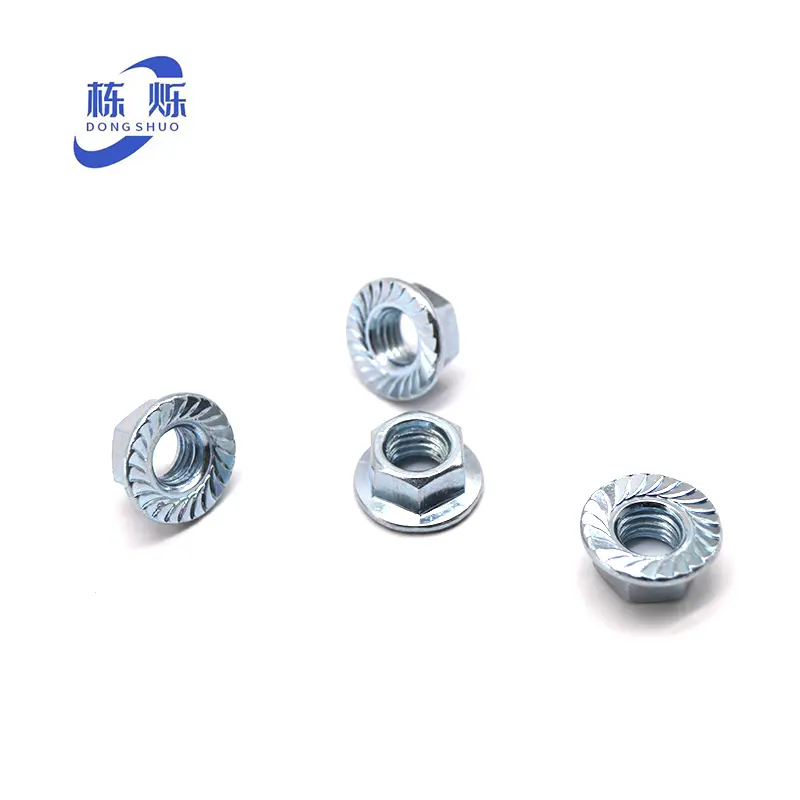

Anti-slip teeth and serrated protrusions distribute pressure evenly, creating a locking effect that prevents loosening and improves sealing against gas or liquid leakage.
High-quality flange nuts reduce vibration and noise during equipment operation, significantly enhancing stability and overall operational efficiency.
