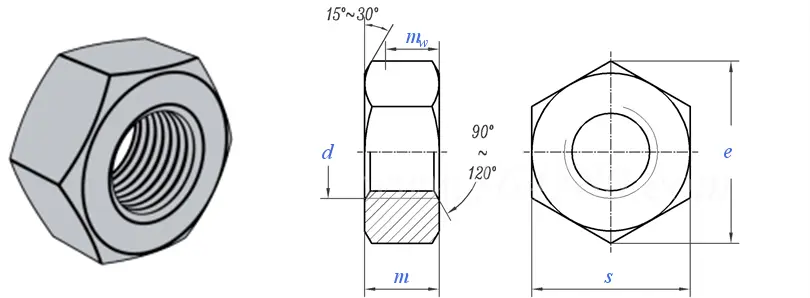

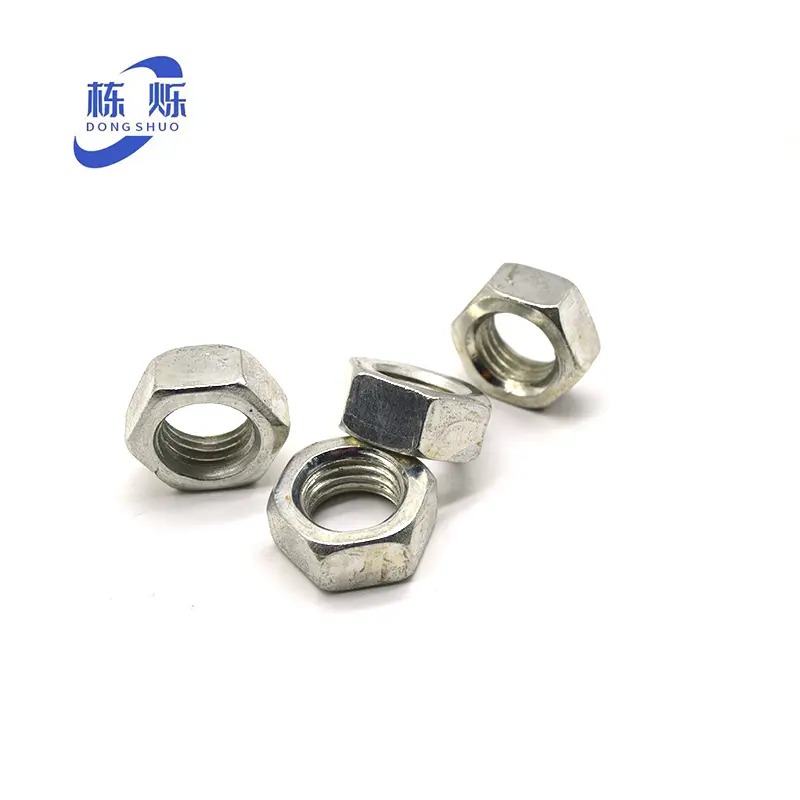

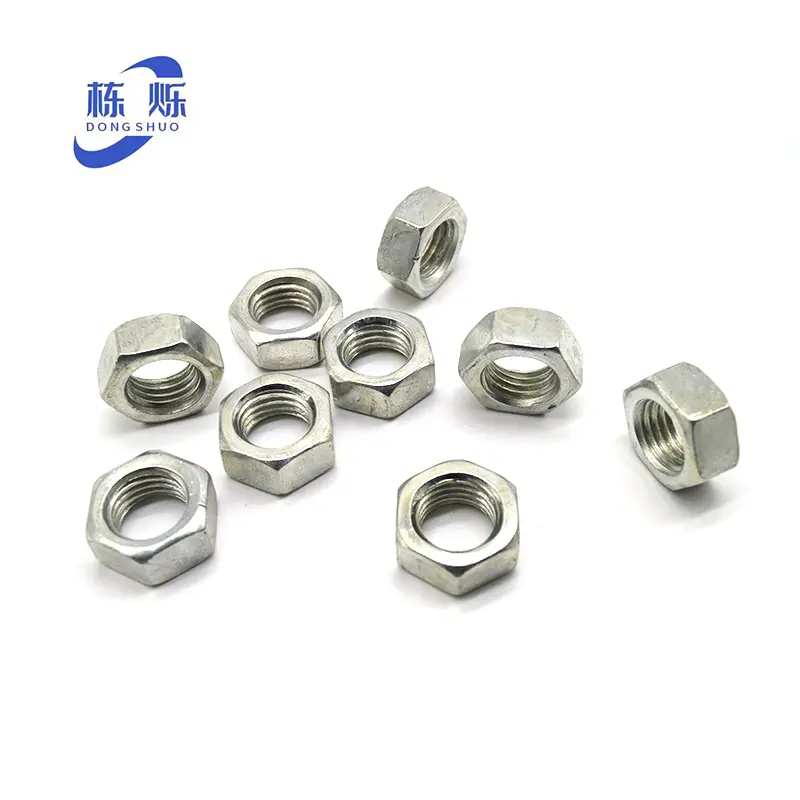

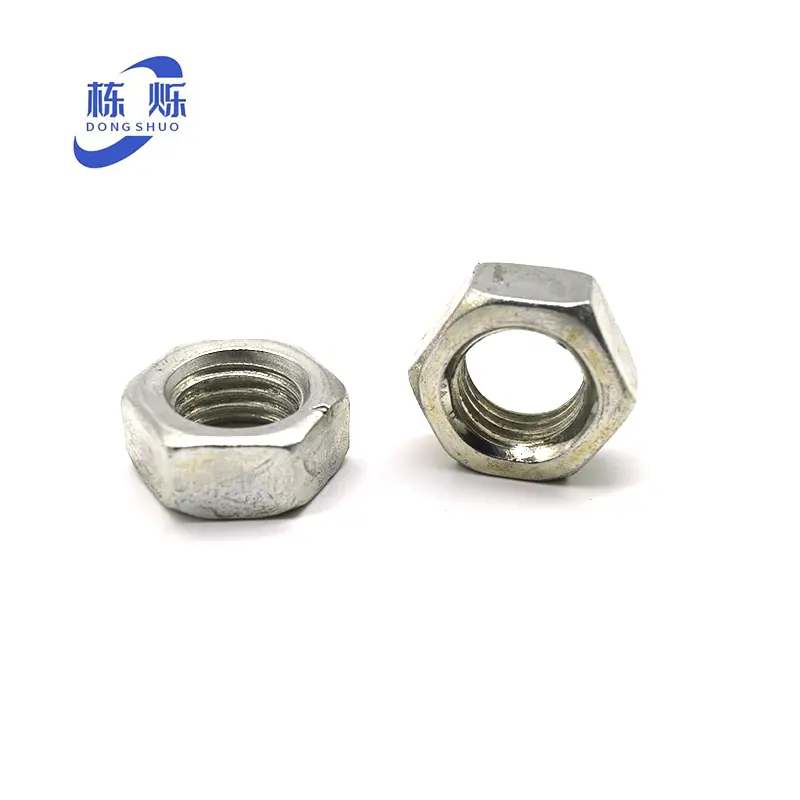

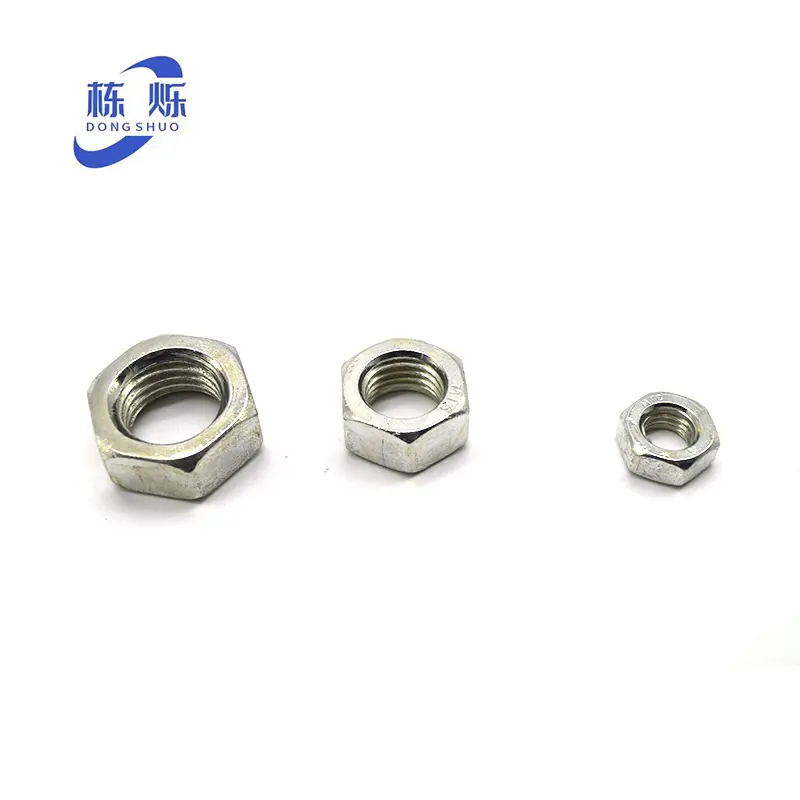

📏 DIN 934 Hexagonal Nut Dimensions — M5 to M27
| Thread size d |
M5 | M6 | M8 | M10 | M12 |
(M14) | M16 | (M18) | M20 |
(M22) | M24 | (M27) |
| P | Pitch |
0.8 | 1 | 1.25 | 1.5 | 1.75 |
2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| e | Max |
8.63 | 10.89 | 14.2 | 17.59 | 19.85 |
22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 |
| m | Max |
5.6 | 6.4 | 7.9 | 9.5 | 12.2 |
13.9 | 15.9 | 16.9 | 19 | 20.2 | 22.3 | 24.7 |
| Min |
4.4 | 4.9 | 6.4 | 8 | 10.4 |
12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.6 |
| mw | Min |
3.5 | 3.7 | 5.1 | 6.4 | 8.3 |
9.7 | 11.3 | 12.1 | 13.5 | 14.5 | 16.2 | 18.1 |
| s | Maximum = nominal |
8 | 10 | 13 | 16 | 18 |
21 | 24 | 27 | 30 | 34 | 36 | 41 |
| Min |
7.64 | 9.64 | 12.57 | 15.57 | 17.57 |
20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 |
| 1,000-piece weight (steel) ≈ kg |
1.13 | 2.1 | 4.54 | 8.6 | 13.33 |
19.98 | 30.45 | 42.31 | 58.37 | 82 | 100.5 | 148 |
📊 DIN 934 Hexagonal Nut Dimensions — M30 to M64
| Thread size d |
M30 | (M33) | M36 | (M39) | M42 |
(M45) | M48 | (M52) | M56 | (M60) | M64 |
| P | Screw pitch |
3.5 | 3.5 | 4 | 4 | 4.5 |
4.5 | 5 | 5 | 5.5 | 5.5 | 6 |
| e | Min |
50.85 | 55.37 | 60.79 | 66.44 | 71.3 |
76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 |
| m | Max |
26.4 | 29.5 | 31.9 | 34.3 | 34.9 |
36.9 | 38.9 | 42.9 | 45.9 | 48.9 | 52.4 |
| Min |
24.3 | 27.4 | 29.4 | 31.8 | 32.4 |
34.4 | 36.4 | 40.4 | 43.4 | 46.4 | 49.4 |
| mw | Min |
19.4 | 21.9 | 23.2 | 25.4 | 25.9 |
27.5 | 29.1 | 32.3 | 34.7 | 37.1 | 39.5 |
| s | Maximum = nominal |
46 | 50 | 55 | 60 | 65 |
70 | 75 | 80 | 85 | 90 | 95 |
| Min |
45 | 49 | 53.8 | 58.8 | 63.1 |
68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 |
| 1,000-piece weight (steel) ≈ kg |
205.2 | 268.8 | 351.7 | 455.9 | 534.8 |
663.1 | 816.8 | 1012 | 1202 | 1418 | 1669 |
⚙️ Fastener Production & Processing Workflow
Choose Product
➤
Determine Material
➤
Sizing
➤
Quotation
➤
Cooperation
➤
Customization
➤
Logistics Shipment
❓ Frequently Asked Questions
What exactly is a DIN 934 galvanized hexagonal nut?
A DIN 934 hexagonal nut is a standard metric hex nut manufactured to German DIN 934 specifications. The galvanized version features a protective zinc coating that significantly improves corrosion resistance for outdoor and industrial use.
Which thread sizes are standard for these hex nuts?
Our DIN 934 nuts are available in a comprehensive range of metric sizes starting from M5 up to M64. This includes all standard industrial sizes and various non-preferred sizes to ensure compatibility with any project.
How can I determine the weight of my order?
The weight is calculated based on 1,000 pieces in kilograms. For instance, M8 nuts weigh approx 4.54 kg per thousand, while large M48 nuts weigh approx 816.8 kg per thousand. Detailed weight charts help in estimating logistics and shipping costs.
Are custom sizes or materials available?
Yes, we specialize in customization. Beyond standard steel and galvanization, we can process nuts according to specific material grades, unique surface treatments, and custom dimensions to meet specialized engineering requirements.
Why should I choose galvanized nuts over plain steel?
Galvanized nuts provide a critical barrier against rust and oxidation. This makes them the preferred choice for construction, marine applications, and humid environments where standard steel would quickly degrade.
What is the process for placing a bulk order?
The process is streamlined: you select the product and material, specify the sizing and quantity, and receive a formal quotation. Once the transaction is finalized, we proceed with custom processing and manage the logistics for direct shipment.
